Bolt anchor FBN II

The cost-efficient fixing for flexible use in non-cracked concrete

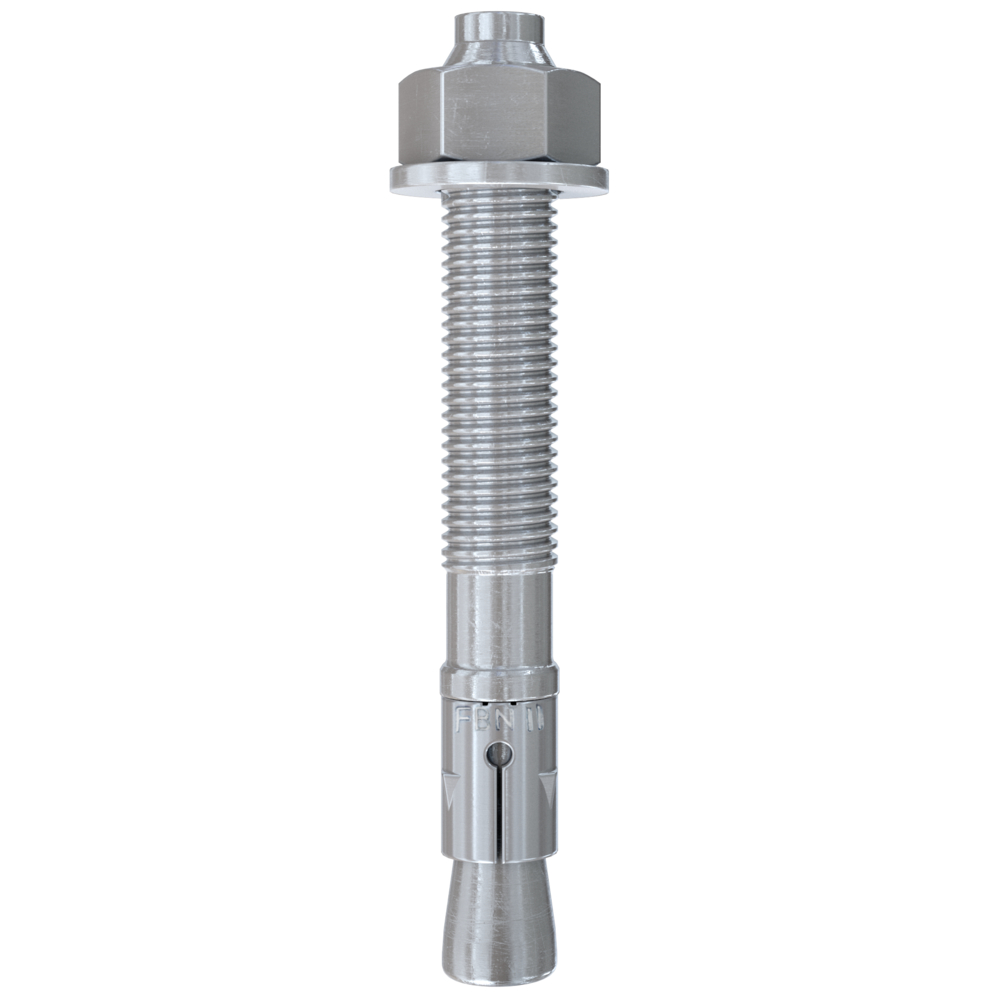

The fischer bolt anchor FBN II is a steel anchor for cost-effective fixations in non-cracked concrete. Thanks to its long thread and the two anchorage depths, the fischer bolt anchor FBN II is particularly flexible. In addition to pre-positioned and push-through installation, the bolt anchor is suitable for stand-off installation. In the stainless steel design, the bolt anchor is suitable for façade sub-structures, cantilevers, and ladders outside.

To all Variants
Advantages
  • The standard anchorage depth achieves the maximum load-bearing capacities. Thus fewer fixing points and smaller anchor plates are required.
  • The reduced anchorage depth reduces the drill hole depth. This minimises the amount of time needed for installation whilst increasing flexibility.
  • The long thread balances component tolerances and allows for stand-off installations, thus increasing flexibility.
  • Few hammer blows and the minimal torque slippage allow for a noticeably simpler installation.
  • The drive-in pin protects the thread from damage, and thus ensures a faster installation and dismantling of the attachment.
Variant
ETA-approval
Drill hole diameter
d0
Min. drill hole depth for through fixings
h2
Anchor length
l
Max. usable length hef,max./hef,min.
tfix
FBN II 10/20 A4 Art.-No. 507559
10 [mm]
88 [mm]
96 [mm]
20/30 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 88 [mm]
Anchor length
l
 96 [mm]
Max. usable length hef,max./hef,min.
tfix
 20/30 [mm]
Thread
Ø x length
 M 10 x 56 [mm]
Width across nut 17 [mm]
Amount 50 Unit(s)
GTIN (EAN Code) 4048962087420
To product variant
FBN II 10/20 Art.-No. 040851
10 [mm]
88 [mm]
96 [mm]
20/30 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 88 [mm]
Anchor length
l
 96 [mm]
Max. usable length hef,max./hef,min.
tfix
 20/30 [mm]
Thread
Ø x length
 M 10 x 56 [mm]
Width across nut 17 [mm]
Amount 50 Unit(s)
GTIN (EAN Code) 4006209408513
To product variant
FBN II 10/10 HDG Art.-No. 507579
10 [mm]
78 [mm]
86 [mm]
10/20 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 78 [mm]
Anchor length
l
 86 [mm]
Max. usable length hef,max./hef,min.
tfix
 10/20 [mm]
Thread
Ø x length
 M 10 x 46 [mm]
Width across nut 17 [mm]
Amount 50 Unit(s)
GTIN (EAN Code) 4048962087666
To product variant
FBN II 10/10 A4 Art.-No. 507558
10 [mm]
78 [mm]
86 [mm]
10/20 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 78 [mm]
Anchor length
l
 86 [mm]
Max. usable length hef,max./hef,min.
tfix
 10/20 [mm]
Thread
Ø x length
 M 10 x 46 [mm]
Width across nut 17 [mm]
Amount 50 Unit(s)
GTIN (EAN Code) 4048962087413
To product variant
FBN II 10/10 Art.-No. 040827
10 [mm]
78 [mm]
86 [mm]
10/20 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 78 [mm]
Anchor length
l
 86 [mm]
Max. usable length hef,max./hef,min.
tfix
 10/20 [mm]
Thread
Ø x length
 M 10 x 46 [mm]
Width across nut 17 [mm]
Amount 50 Unit(s)
GTIN (EAN Code) 4006209408278
To product variant
FBN II 8/100 Art.-No. 040783
8 [mm]
156 [mm]
161 [mm]
100/110 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 156 [mm]
Anchor length
l
 161 [mm]
Max. usable length hef,max./hef,min.
tfix
 100/110 [mm]
Thread
Ø x length
 M 8 x 129 [mm]
Width across nut 13 [mm]
Amount 20 Unit(s)
GTIN (EAN Code) 4006209407837
To product variant
FBN II 8/70 HDG Art.-No. 507578
8 [mm]
126 [mm]
131 [mm]
70/80 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 126 [mm]
Anchor length
l
 131 [mm]
Max. usable length hef,max./hef,min.
tfix
 70/80 [mm]
Thread
Ø x length
 M 8 x 99 [mm]
Width across nut 13 [mm]
Amount 20 Unit(s)
GTIN (EAN Code) 4048962087659
To product variant
FBN II 8/70 Art.-No. 040777
8 [mm]
126 [mm]
131 [mm]
70/80 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 126 [mm]
Anchor length
l
 131 [mm]
Max. usable length hef,max./hef,min.
tfix
 70/80 [mm]
Thread
Ø x length
 M 8 x 99 [mm]
Width across nut 13 [mm]
Amount 20 Unit(s)
GTIN (EAN Code) 4006209407776
To product variant
FBN II 8/50 HDG Art.-No. 507577
8 [mm]
106 [mm]
111 [mm]
50/60 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 106 [mm]
Anchor length
l
 111 [mm]
Max. usable length hef,max./hef,min.
tfix
 50/60 [mm]
Thread
Ø x length
 M 8 x 79 [mm]
Width across nut 13 [mm]
Amount 50 Unit(s)
GTIN (EAN Code) 4048962087642
To product variant
FBN II 8/50 A4 Art.-No. 507557
8 [mm]
106 [mm]
111 [mm]
50/60 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 106 [mm]
Anchor length
l
 111 [mm]
Max. usable length hef,max./hef,min.
tfix
 50/60 [mm]
Thread
Ø x length
 M 8 x 79 [mm]
Width across nut 13 [mm]
Amount 50 Unit(s)
GTIN (EAN Code) 4048962087406
To product variant
FBN II 8/50 Art.-No. 040771
8 [mm]
106 [mm]
111 [mm]
50/60 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 106 [mm]
Anchor length
l
 111 [mm]
Max. usable length hef,max./hef,min.
tfix
 50/60 [mm]
Thread
Ø x length
 M 8 x 79 [mm]
Width across nut 13 [mm]
Amount 50 Unit(s)
GTIN (EAN Code) 4006209407714
To product variant

Approvals


Title Type Created Valid Till
Title ETA - European Technical Assessment (PDF, 2 MB) European Technical Assessment for fischer Bolt Anchor FBN II, FBN II A4 Type ETA-07/0211 Created 5/19/2016 Valid Till
Title ETA - European Technical Assessment (PDF, 704 KB) European Technical Assessment for fischer Bolt Anchor FBN II HDG - Torque controlled expansion anchor Type ETA-18/0101 Created 7/16/2018 Valid Till
Title DOP - Declaration of Performance (PDF, 1 MB) Declaration of Performance fischer Bolt Anchor FBN II - FBN II A4,  according European Technical Assessment ETA-07/0211 Type DoP No. 0015 Created 5/25/2016 Valid Till
Title DOP - Declaration of Performance (PDF, 395 KB) Type DoP No. 0098 Created 7/23/2018 Valid Till
Title DOP - Declaration of Performance (PDF, 1 MB) Type DoP No. 0756-CPD-0296 Created 5/23/2013 Valid Till
Title Test report (fire protection) (PDF, 1 MB) Type GS 3.2/18-082-1-r1 Created 7/3/2018 Valid Till
