Frame fixing SXR without safety screw

The efficient with short expansion element

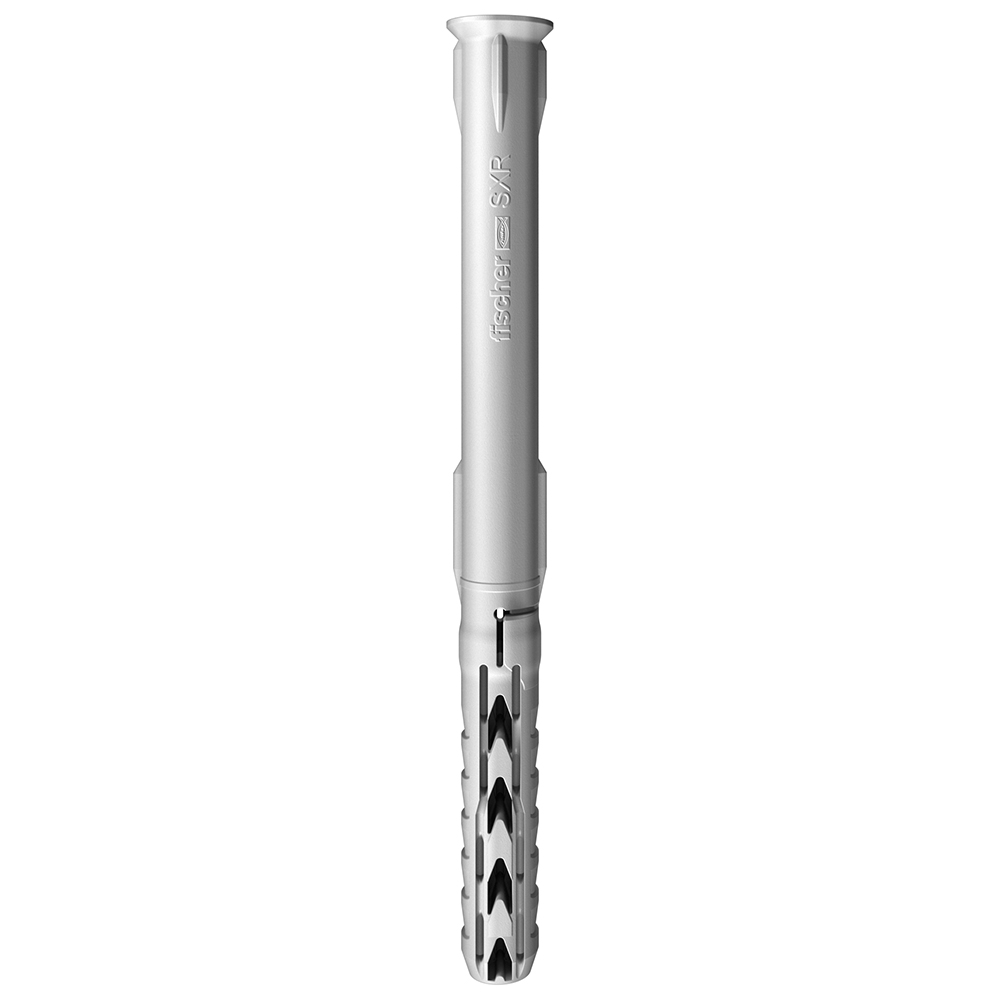

The fischer frame fixing SXR is a plug made from high-quality nylon. Thanks to its special plug geometry, the SXR can be used in solid and hollow building materials. The low drill hole depth saves time and reduces bit wear. Due to the low anchorage depth of just 50 mm, the frame fixing can work particularly cost-effectively. The SXR is offered with diameters of 6 and 8 mm up to a fixing length of 120 mm.

To all Variants
Advantages
  • The special functioning allows for use in solid and hollow building materials with an anchorage depth of just 50 mm, thus ensuring an economic fixing.
  • The assortment, with diameters of 6 and 8 mm, offers the right plug for a wide range of fixings.
Variant
Drill hole diameter
d0
Min. drill hole depth for through fixings
h2
Min. anchorage depth
hnom (hv)
Anchor length
l
Max. fixture thickness
t fix
SXR 8 x 60 K NV Art.-No. 532741
8 [mm]
70 [mm]
50 [mm]
60 [mm]
10 [mm]

Attributes

Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 70 [mm]
Min. anchorage depth
hnom (hv)
 50 [mm]
Anchor length
l
 60 [mm]
Max. fixture thickness
t fix
 10 [mm]
Card contents 10 x SXR 8 x 60
Cartons of —
Amount —
GTIN (EAN Code) 4048962218565
To product variant
SXR 8 x 80 K NV Art.-No. 532683
8 [mm]
90 [mm]
50 [mm]
80 [mm]
30 [mm]

Attributes

Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 90 [mm]
Min. anchorage depth
hnom (hv)
 50 [mm]
Anchor length
l
 80 [mm]
Max. fixture thickness
t fix
 30 [mm]
Card contents 10 x SXR 8 x 80
Cartons of —
Amount —
GTIN (EAN Code) 4048962218022
To product variant
SXR 8 x 80 K Art.-No. 094362
8 [mm]
90 [mm]
50 [mm]
80 [mm]
30 [mm]

Attributes

Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 90 [mm]
Min. anchorage depth
hnom (hv)
 50 [mm]
Anchor length
l
 80 [mm]
Max. fixture thickness
t fix
 30 [mm]
Card contents 10 x SXR 8 x 80
Cartons of —
Amount 10 Unit(s)
GTIN (EAN Code) 4006209943625
To product variant
SXR 8 x 60 K Art.-No. 094346
8 [mm]
70 [mm]
50 [mm]
60 [mm]
10 [mm]

Attributes

Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 70 [mm]
Min. anchorage depth
hnom (hv)
 50 [mm]
Anchor length
l
 60 [mm]
Max. fixture thickness
t fix
 10 [mm]
Card contents 10 x SXR 8 x 60
Cartons of —
Amount 10 Unit(s)
GTIN (EAN Code) 4006209943465
To product variant
SXR 8 x 120 Art.-No. 506199
8 [mm]
130 [mm]
50 [mm]
120 [mm]
70 [mm]

Attributes

Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 130 [mm]
Min. anchorage depth
hnom (hv)
 50 [mm]
Anchor length
l
 120 [mm]
Max. fixture thickness
t fix
 70 [mm]
Card contents —
Cartons of —
Amount 100 Unit(s)
GTIN (EAN Code) 4048962072860
To product variant
SXR 8 x 100 Art.-No. 506198
8 [mm]
110 [mm]
50 [mm]
100 [mm]
50 [mm]

Attributes

Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 110 [mm]
Min. anchorage depth
hnom (hv)
 50 [mm]
Anchor length
l
 100 [mm]
Max. fixture thickness
t fix
 50 [mm]
Card contents —
Cartons of —
Amount 100 Unit(s)
GTIN (EAN Code) 4048962072853
To product variant
SXR 8 x 80 Art.-No. 506196
8 [mm]
90 [mm]
50 [mm]
80 [mm]
30 [mm]

Attributes

Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 90 [mm]
Min. anchorage depth
hnom (hv)
 50 [mm]
Anchor length
l
 80 [mm]
Max. fixture thickness
t fix
 30 [mm]
Card contents —
Cartons of —
Amount 100 Unit(s)
GTIN (EAN Code) 4048962072846
To product variant
SXR 8 x 60 Art.-No. 506194
8 [mm]
70 [mm]
50 [mm]
60 [mm]
10 [mm]

Attributes

Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 70 [mm]
Min. anchorage depth
hnom (hv)
 50 [mm]
Anchor length
l
 60 [mm]
Max. fixture thickness
t fix
 10 [mm]
Card contents —
Cartons of —
Amount 100 Unit(s)
GTIN (EAN Code) 4048962072839
To product variant
SXR 6 x 60 Art.-No. 503230
6 [mm]
70 [mm]
30 [mm]
60 [mm]
30 [mm]

Attributes

Drill hole diameter
d0
 6 [mm]
Min. drill hole depth for through fixings
h2
 70 [mm]
Min. anchorage depth
hnom (hv)
 30 [mm]
Anchor length
l
 60 [mm]
Max. fixture thickness
t fix
 30 [mm]
Card contents —
Cartons of —
Amount 100 Unit(s)
GTIN (EAN Code) 4048962055467
To product variant
SXR 6 x 50 Art.-No. 503229
6 [mm]
60 [mm]
30 [mm]
50 [mm]
20 [mm]

Attributes

Drill hole diameter
d0
 6 [mm]
Min. drill hole depth for through fixings
h2
 60 [mm]
Min. anchorage depth
hnom (hv)
 30 [mm]
Anchor length
l
 50 [mm]
Max. fixture thickness
t fix
 20 [mm]
Card contents —
Cartons of —
Amount 100 Unit(s)
GTIN (EAN Code) 4048962055450
To product variant
SXR 6 x 35 Art.-No. 503228
6 [mm]
45 [mm]
30 [mm]
35 [mm]
5 [mm]

Attributes

Drill hole diameter
d0
 6 [mm]
Min. drill hole depth for through fixings
h2
 45 [mm]
Min. anchorage depth
hnom (hv)
 30 [mm]
Anchor length
l
 35 [mm]
Max. fixture thickness
t fix
 5 [mm]
Card contents —
Cartons of —
Amount 100 Unit(s)
GTIN (EAN Code) 4048962055443
To product variant
