Frame fixing FUR with countersunk head

The lamella plug with gentle power transfer.

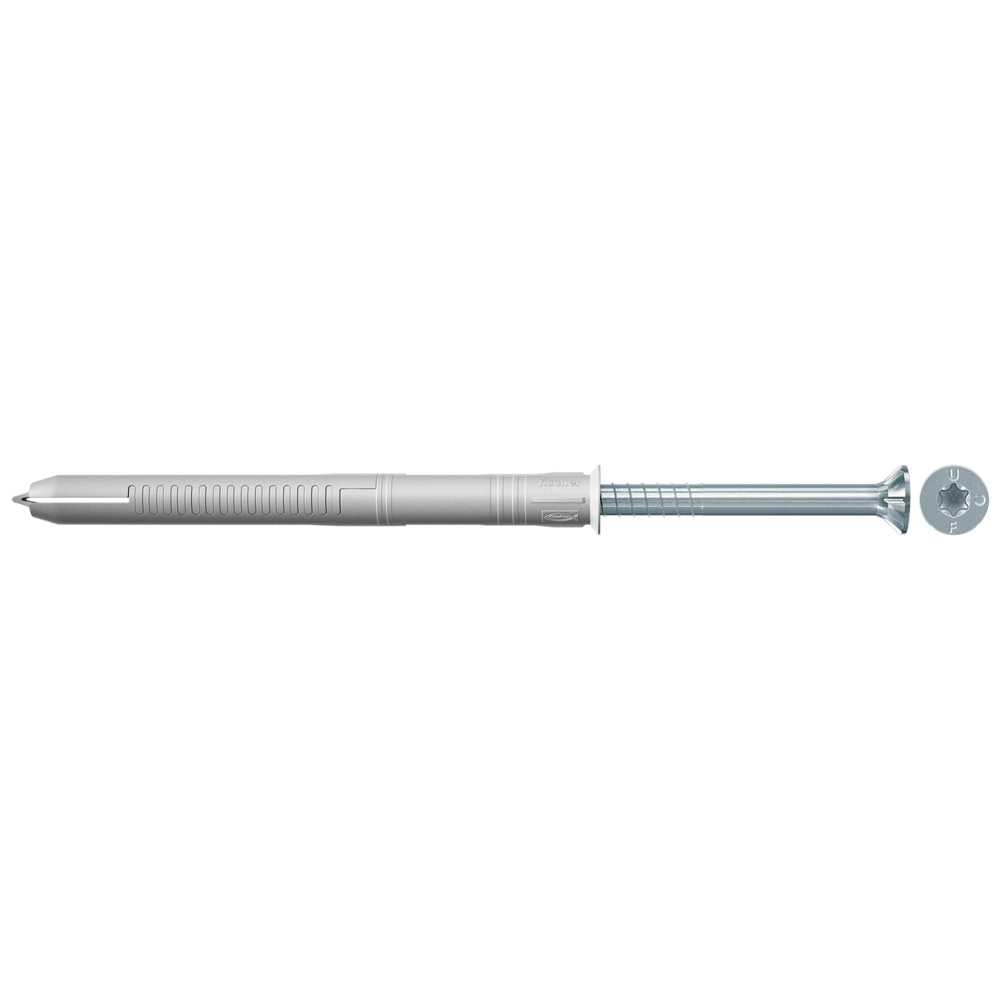

The fischer frame fixing FUR consists of a plug sleeve made from high-quality nylon and a countersunk head screw made from zinc-plated steel or stainless steel. When the screw is screwed in, the asymmetrically arranged lamella teeth expand evenly against the wall of the drill hole in the solid building material. In hollow materials, the teeth expand through the solid part of the block and form an undercut in the cavity. The functional principle enables an even load application without extreme expansion pressure and simplifies installation even in the case of an unknown mounting substrate. The FUR is offered in diameters of 8 mm and 10 mm up to a fixing length of 230 mm. The European Technical Approval for the FUR 10 offers added safety. The FUR with countersunk head screw is particularly suitable for the fixing of substructures made of wood.

To all Variants
Advantages
  • The operating principle with 70 mm anchorage depth and tried and tested lamellae technology makes it an assembly-friendly plug even in unknown base material.
  • The slim geometry guarantees a simple installation, even in cases involving thick wooden fixtures and narrow drill holes.
Variant
ETA-approval
Drill hole diameter
d0
Min. drill hole depth for through fixings
h2
Min. anchorage depth
hnom (hv)
Anchor length
l
FUR 10 x 100 T A4 Art.-No. 088785
10 [mm]
110 [mm]
70 [mm]
100 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 110 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 100 [mm]
Max. fixture thickness
t fix
 30 [mm]
Drive T40
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209887851
To product variant
FUR 10 x 100 T Art.-No. 088757
10 [mm]
110 [mm]
70 [mm]
100 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 110 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 100 [mm]
Max. fixture thickness
t fix
 30 [mm]
Drive T40
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209887578
To product variant
FUR 10 x 80 T A4 Art.-No. 088784
10 [mm]
90 [mm]
70 [mm]
80 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 90 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 80 [mm]
Max. fixture thickness
t fix
 10 [mm]
Drive T40
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209887844
To product variant
FUR 10 x 80 T Art.-No. 088756
10 [mm]
90 [mm]
70 [mm]
80 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 90 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 80 [mm]
Max. fixture thickness
t fix
 10 [mm]
Drive T40
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209887561
To product variant
FUR 8 x 120 T A4 Art.-No. 070122
—
8 [mm]
130 [mm]
70 [mm]
120 [mm]

Attributes

ETA-approval —
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 130 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 120 [mm]
Max. fixture thickness
t fix
 50 [mm]
Drive T30
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209701225
To product variant
FUR 8 x 120 T Art.-No. 070112
—
8 [mm]
130 [mm]
70 [mm]
120 [mm]

Attributes

ETA-approval —
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 130 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 120 [mm]
Max. fixture thickness
t fix
 50 [mm]
Drive T30
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209701126
To product variant
FUR 8 x 100 T A4 Art.-No. 070121
—
8 [mm]
110 [mm]
70 [mm]
100 [mm]

Attributes

ETA-approval —
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 110 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 100 [mm]
Max. fixture thickness
t fix
 30 [mm]
Drive T30
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209701218
To product variant
FUR 8 x 100 T Art.-No. 070111
—
8 [mm]
110 [mm]
70 [mm]
100 [mm]

Attributes

ETA-approval —
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 110 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 100 [mm]
Max. fixture thickness
t fix
 30 [mm]
Drive T30
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209701119
To product variant
FUR 8 x 80 T A4 Art.-No. 070120
—
8 [mm]
90 [mm]
70 [mm]
80 [mm]

Attributes

ETA-approval —
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 90 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 80 [mm]
Max. fixture thickness
t fix
 10 [mm]
Drive T30
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209701201
To product variant
FUR 8 x 80 T Art.-No. 070110
—
8 [mm]
90 [mm]
70 [mm]
80 [mm]

Attributes

ETA-approval —
Drill hole diameter
d0
 8 [mm]
Min. drill hole depth for through fixings
h2
 90 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 80 [mm]
Max. fixture thickness
t fix
 10 [mm]
Drive T30
Card contents —
Cartons of —
Amount 50 Unit(s)
GTIN (EAN Code) 4006209701102
To product variant
FUR 10 x 185 T E Art.-No. 045260
10 [mm]
195 [mm]
70 [mm]
185 [mm]

Attributes

ETA-approval
Drill hole diameter
d0
 10 [mm]
Min. drill hole depth for through fixings
h2
 195 [mm]
Min. anchorage depth
hnom (hv)
 70 [mm]
Anchor length
l
 185 [mm]
Max. fixture thickness
t fix
 115 [mm]
Drive T40
Card contents 1x Frame fixing FUR 10 x 185 T, single label
Cartons of —
Amount —
GTIN (EAN Code) 4006209452608
To product variant

Approvals


Title Type Created Valid Till
Title ETA - European Technical Assessment (PDF, 785 KB) European Technical Assessment for fischer frame fixing FUR - Plastic anchor for multiple use in concrete and masonry for non-structural applications Type ETA-13/0235 Created 5/31/2018 Valid Till
Title DOP - Declaration of Performance (PDF, 602 KB) Declaration of Performance fischer FUR / concrete / masonry according ETA-13/0235 Type DoP No. 0033 Created 8/20/2015 Valid Till
Title DOP - Declaration of Performance (PDF, 530 KB) Type DoP No. 0142 Created 6/6/2018 Valid Till
Title DOP - Declaration of Performance (PDF, 1 MB) Type DoP No. 0756-CPD-0545 Created 7/12/2013 Valid Till
