Dynamic-Anchor FDA

The dynamic push-through anchor for an economical serial installation at medium load level

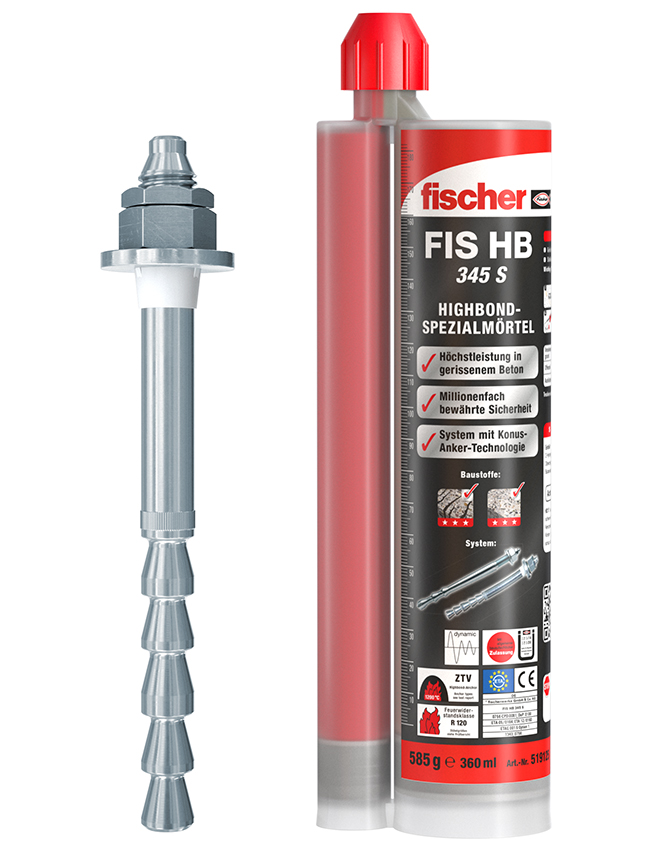

The fischer dynamic-anchor FDA is processed with the injection mortar FIS HB. The anchor has general building regulations approval for dynamic applications in cracked concrete. Because of its cone shape is us suitable for fixing moderate load levels of dynamic loads indoors. The preinstalled threaded rod and the push-through installation allow rapid progress and predestine it for economical series installation. Platform lifts and conveyor systems, for example, are fixed with the Dynamic-Anchor FDA.

To all Variants
Advantages
  • Medium load level for a variety of applications.
  • Pre-assembled anchor rod for fast installation.
  • Approved safety by DIBt-Approval for endless numbers of load cycles.
  • Easy push-through installation leads to cost effectiveness – especially for serial installations.
  • Tight assortment with the size.
  • Less spacings and edge distances.
  • Drill holes are sealed.
Variant
DIBt-approval
Drill hole diameter
d0
Drill depth through fixture
td
Anchorage depth
hef
Min. - max. usable length
tfix
FDA-A 16 x 125/50 gvz Art.-No. 536946
18 [mm]
180 [mm]
125 [mm]
16 - 50 [mm]

Attributes

DIBt-approval
Drill hole diameter
d0
 18 [mm]
Drill depth through fixture
td
 180 [mm]
Anchorage depth
hef
 125 [mm]
Min. - max. usable length
tfix
 16 - 50 [mm]
Drill hole diameter in fixture
df
 19 [Ø mm]
Width across nut 24 [mm]
Amount 10 Unit(s)
GTIN (EAN Code) 4048962252989
To product variant
FDA-A 16 x 125/25 gvz Art.-No. 536945
18 [mm]
155 [mm]
125 [mm]
16 - 25 [mm]

Attributes

DIBt-approval
Drill hole diameter
d0
 18 [mm]
Drill depth through fixture
td
 155 [mm]
Anchorage depth
hef
 125 [mm]
Min. - max. usable length
tfix
 16 - 25 [mm]
Drill hole diameter in fixture
df
 19 [Ø mm]
Width across nut 24 [mm]
Amount 10 Unit(s)
GTIN (EAN Code) 4048962252972
To product variant
FDA-A 12 x 100/50 gvz Art.-No. 536944
14 [mm]
155 [mm]
100 [mm]
12 - 50 [mm]

Attributes

DIBt-approval
Drill hole diameter
d0
 14 [mm]
Drill depth through fixture
td
 155 [mm]
Anchorage depth
hef
 100 [mm]
Min. - max. usable length
tfix
 12 - 50 [mm]
Drill hole diameter in fixture
df
 15 [Ø mm]
Width across nut 19 [mm]
Amount 10 Unit(s)
GTIN (EAN Code) 4048962252965
To product variant
FDA-A 12 x 100/25 gvz Art.-No. 536943
14 [mm]
130 [mm]
100 [mm]
12 - 25 [mm]

Attributes

DIBt-approval
Drill hole diameter
d0
 14 [mm]
Drill depth through fixture
td
 130 [mm]
Anchorage depth
hef
 100 [mm]
Min. - max. usable length
tfix
 12 - 25 [mm]
Drill hole diameter in fixture
df
 15 [Ø mm]
Width across nut 19 [mm]
Amount 10 Unit(s)
GTIN (EAN Code) 4048962252941
To product variant
Legend   =   Permission Available —  =   Permission not Available
